Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Types:
- Horizontal type
- Applicable material:
- Grainy
- Mode of operation:
- Continuous type
- Drying medium:
- Flue gas
- Operating pressure:
- 减压
- Model:
- GT800
- Drying medium movement:
- Parallel current
- Heating mode:
- Radiation type
- Drying capacity:
- rapid drying
- Application field:
- sago

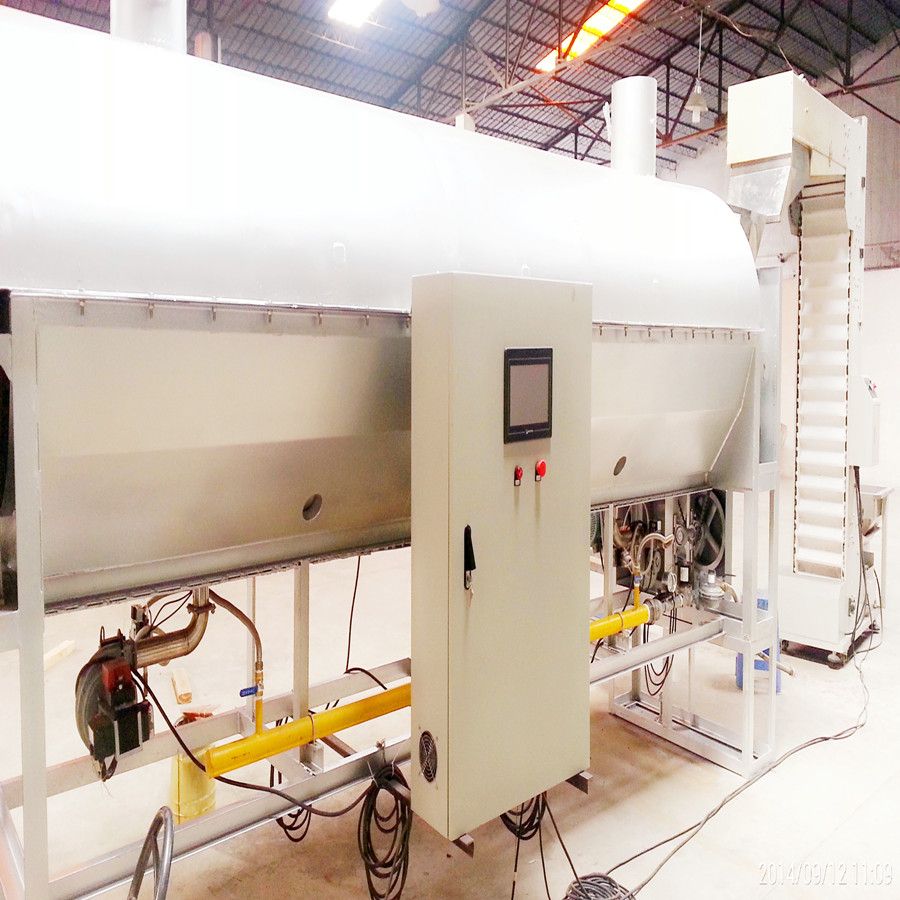

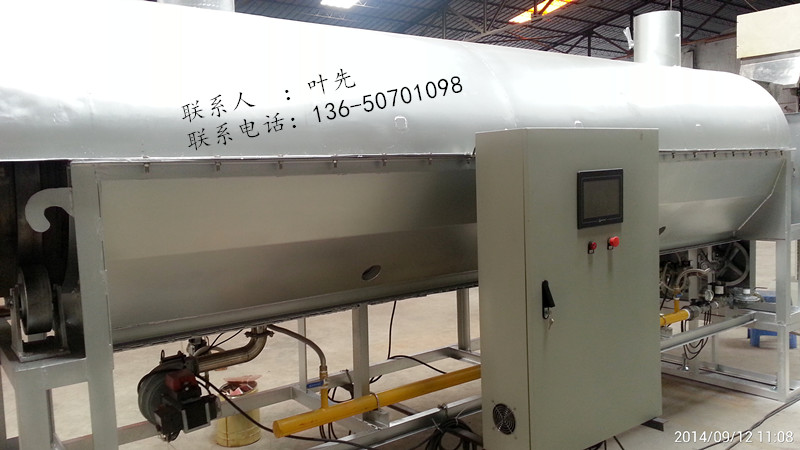

1. Overview of gas direct-fired drum dryer
Gas direct-fired heating drumdryer iswidely used for hard shell and curing products, mainly for buckwheat| sago| melon seeds| Materials with low isohumidity and high specific gravity. The slag drying production line is mainly composed of rotary cylinder, air induction equipment, material lifting plate, automatic transmission device, conveying equipment, infrared heating device, reducer, supporting device and heat preservation device. A complete set of drying equipment reasonable design, excellent production, stable performance, advanced technology, high output, the use of gas infrared direct combustion heating mode, heating fast, low energy consumption, small footprint, no boiler heating, single control, high degree of mechanization nbsp;
Second, the drum dryer application rangeA tumble dryeris a dryer that handles large amounts of material. Due to reliable operation, flexibility, adaptability and large throughput, it is widely used in food and light industry. Rotary drum dryer is generally suitable for granular materials, and can also be used to dry sticky paste materials or materials with small water content by partially mixing materials. Its advantages are large production capacity, wide application range, small flow resistance, large allowable fluctuation range in operation, convenient operation, etc.
Third, the working principle of drum dryer
The material to be dried is conveyed to the hopper by belt conveyor or bucket elevator, and then enters the charging end through the charging pipe by the hopper feeder. The slope of the feeding pipe should be greater than the natural inclination of the material, so that the material can flow smoothly into the dryer. The dryer cylinder is a rotating cylinder that is slightly inclined to the horizontal. The material is added from the higher end, and the heat carrier enters from the lower end, and contacts with the material in countercurrent. With the rotation of the cylinder, the material is moved to the lower end by gravity. Wet material in the cylinder forward movement process, directly or indirectly by the heat medium to heat, so that wet materials can be dried, and then at the discharge end through the belt conveyor or screw conveyor sent out.
Acopy plate is installed on the inner wall of the drum dryer, and its function is to copy the material and scatter it, so that the contact surface between the material and the airflow increases, so as to improve the drying rate and promote the material to advance. Heat carriers are generally divided into hot air, flue gas, etc. After the heat carrier passes through the dryer, a cyclone dust collector is generally required to collect the materials carried in the gas. To further reduce the dust content of tail gas, it should also be discharged after a bag filter or wet dust collector.
Four, the characteristics of the drum dryer
1.The drum dryer hasstrong overload resistance, large processing capacity, low fuel consumption and low drying cost;
2, the use of gas infrared bottom heating drying method, through infrared heating at the bottom of the dryer, rapid heating of the drum, so that the drum quickly heated, dryer outlet temperature is low, high thermal efficiency;
3, according to different material properties can change the operating parameters, so that the material in the dryer cylinder can form a stable full-section material curtain.
4. The drum dryer adopts a new feeding and discharging device to eliminate the phenomenon of feeding blockage, discontinuity, unevenness and return.
5. The dryer achieves“ zero horizontal thrust”, reduces the wear of the retaining wheel, and the cylinder runs smoothly and reliably;
6. The dryer adopts“ self-aligning supporting wheel device”, and the coordination of supporting wheel and rolling ring is always in linear contact, thus greatly reducing wear and power loss;
7, gas direct-fired drum dryer can be customized according to user requirements of non-standard design.
our services
Guangzhou Lanju Energy TechnologyCo., Ltd. not only has skilled technicians and experienced after-sales service team, butalso has many years of practical experience in the field of natural gas combustion, heating and drying.It also keeps up with the trend of applying Internet technology to all aspects of the company's production and operation, actively develops Internet marketing, and timely provides information and technical services for the company's new products. Ensure that users provide perfect services.
pre-sales
1. Guide customers to select the appropriateproductequipment configuration.
2. According to customer requirements, non-standard customized products, while meeting customer production processes, energy saving and environmental protection.
3. Assignsenior engineers to the site for free toplan the site\design process and scheme.
4. Plan the overall energy use plan according to the customer's on-site energy consumption.
in sale
1. Strict inspection of products before delivery (single machine test is not less than 6 hours).
2. Organize delivery according to contract.
3. Strictly according to the customer to determine the design of manufacturing.
after-sales
1. Assign after-sales service personnel to the site to guide installation and debugging.
2. Train operators on site.
3. Domestic customers encountered problems in the production process, our company's service personnel guarantee to give a clear solution within 12 hours. 48 hours to the scene to deal with.
