Product DescriptionCompany Info.<>
- Model:
- GT860
- Processing customization:
- Yes
- Power:
- 20 KVA
- Temperature range:
- 80-500 degrees
- Overall dimension:
- non-standard custom m
- Weight:
- non-standard kg
- Use:
- heating/drying
- Working voltage:
- 220V
- Insulation resistance:
- 00
- Electric strength:
- 12
- Continuous service life:
- 4 years
- Heater type:
- fuel gas heater
The heat generated by the combustion of gas can raise the temperature of the object to 800- 1000 degrees, thereby radiating intense infrared rays with a corresponding wavelength of 2-4 microns. Infrared is invisible light that travels straight at the speed of light and has a certain penetration. After infrared rays are absorbed by objects, they can be quickly converted into heat energy, so there is a strong heating effect. When the infrared wavelength is consistent with the absorption wavelength of the heated object, the heated object absorbs infrared rays. At this time, the molecules and atoms inside the object resonate to produce strong vibration and rotation. The vibration and rotation raise the temperature of the object and achieve the purpose of heating. Thus, infrared rays can be used for rapid heating.
Advantages of gas infrared drying:
1. Comparison of gas infrared and hot air drying: hot air drying is to dry the surface of the object through the flow of hot air, so that moisture evaporation from the surface, such a way will make the object appear false dry phenomenon (surface dry or crust but not dry inside); infrared drying is through infrared radiation directly to the inside of the object, from inside to outside or inside and outside at the same time absorb radiant energy, so that moisture evaporation, to achieve the purpose of uniform drying inside and outside.
2. Comparison between gas infrared drying and electric drying: electric infrared drying, the principle is the same as gas infrared drying, but electric infrared drying consumes more power. Although electric microwave drying and infrared drying are different, they are also internal and external drying modes, so the drying effect is similar to infrared, but the power consumption is the same as electric infrared. The power of one kilogram of liquefied gas is equivalent to 14 kWh of electricity, and the power of one square meter of natural gas is equivalent to 10 kWh of electricity. According to the electricity price and gas price of each place, it can be obtained that the infrared heating of gas is much more energy-saving than electric heating.
Blue torch infrared equipment energy-saving features:
Because the material is a network of three-dimensional structure of holes, each hole is irregular, coupled with elasticity, so it can effectively avoid airflow noise. At the same time, due to the completely premixed combustion mode, the combustion is sufficient and the excess air coefficient is small, so the thermal efficiency is relatively high and the gas can be saved. Moreover, due to the low resistance of the material, there is no need for a high-power fan, and the resulting electricity bill can be saved.
Due to the use of high temperature resistant alloy material sheets as heating elements and combustion media, and the thermal inertia of the material is small, so it can quickly heat up and cool down, that is, after ignition, its temperature can rise from normal temperature to working temperature within a few seconds. Similarly, after stopping working, it can also cool from working temperature to normal temperature within a few seconds. This is very beneficial to prevent materials from being damaged due to excessive heating, especially to completely avoid flammable materials such as paper, The fabric caught fire due to overheating when encountering extraordinary accidents such as power failure.
product presentation
First, infrared heater radiation principle
Any object radiates energy to the outside world. According to Boltzmann's law, the relationship between the energy radiated by an object and its temperature follows the following formula: E=σ T4
It can be seen that there is a fourth-power relationship between the energy and temperature of the object radiation, that is, the higher the temperature of the object, the greater the energy radiated to the outside. The heat generated by the combustion of gas can raise the temperature of the object to 800-1000 ° C, thereby radiating intense infrared rays with a corresponding wavelength of 2-4μ m.
Second, infrared heating (drying) principle
Infrared is invisible light that travels straight at the speed of light and has a certain penetration. After infrared rays are absorbed by objects, they can be quickly converted into heat energy, which has a strong heating effect.
Different materials have different absorption rates for infrared rays. Water is one of the substances that can absorb infrared rays strongly. After water absorbs infrared rays, its temperature rises rapidly and evaporates. This is the principle of infrared drying. Infrared heating is several times faster than conventional hot air heating, so infrared can be used in situations where rapid heating and drying are required.
III. Blue torch gas infrared heating unit
1. The use of fully premixed combustion principle, full combustion, low pollutant emissions.
2. Alloy material as heating element, resistant to mechanical shock and thermal shock, long service life.
3. High radiation temperature and high radiation intensity ensure rapid heating.
4. The special structure ensures a large range of load adjustment and increases flexibility in use.
5. It can be combined into heating equipment of different specifications according to needs, and it is convenient to replace.

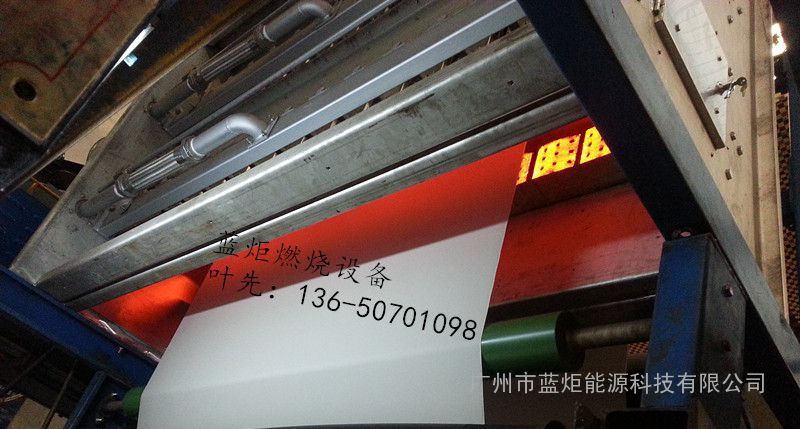

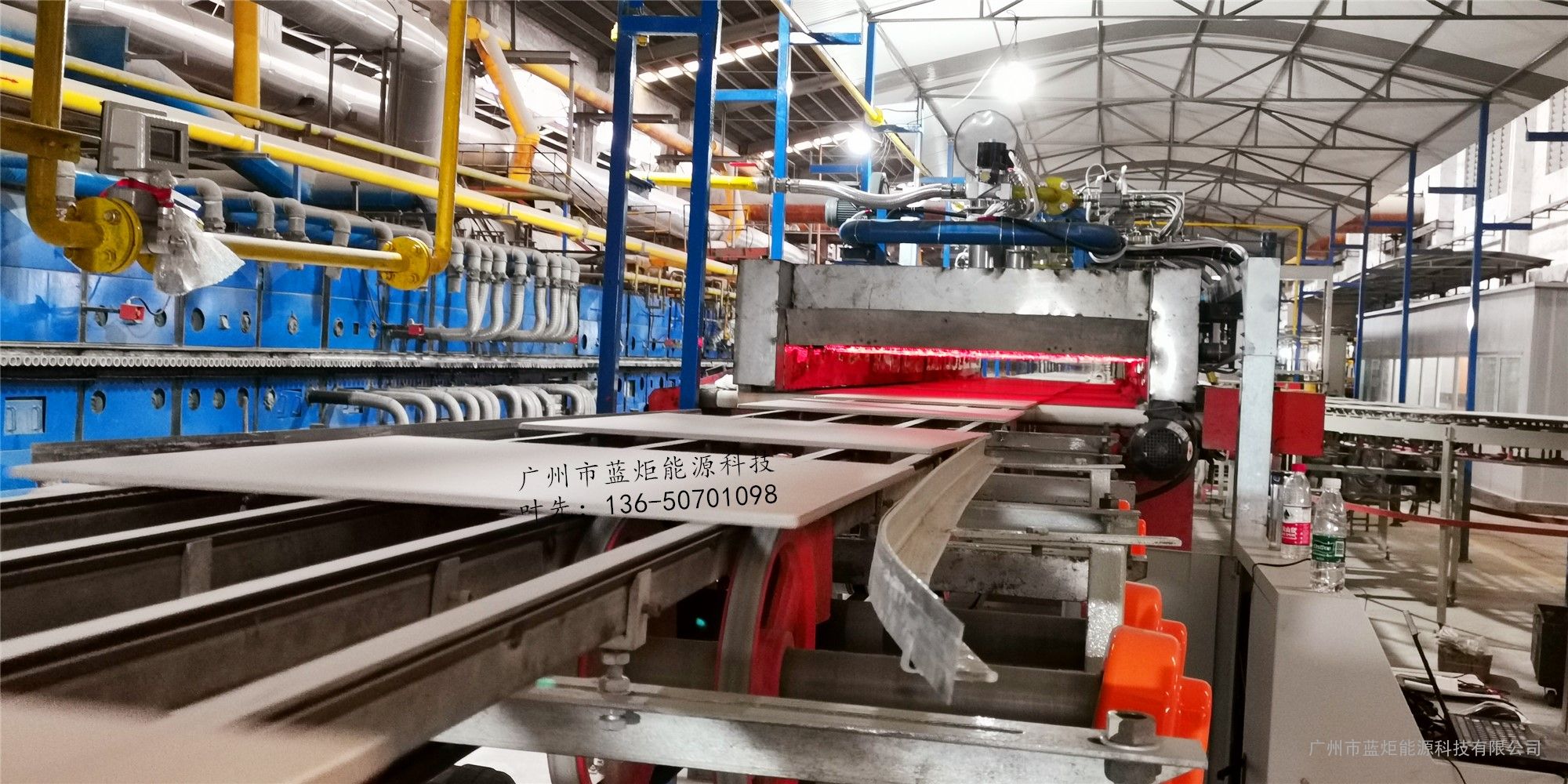

6. It can be applied to various occasions requiring heating or drying, such as drying of paper and fabrics, curing of coatings, baking equipment, etc.
IV. Specifications of infrared heater
Shape: 150mm (L)*200mm (W)*40mm (T)
Heating power: 3-25kw
Gas consumption: 0.23-1.95kg/h (liquefied gas) or 0.3-2.5m?/h h (natural gas)
Blue torch gas infrared product features:
1 high temperature: surface temperature up to 1100℃ (limit temperature upper limit 1250℃)
2 thermal load adjustment range, infrared combustion mode: 70-300kw/m2.
3 long service life: * up to 20000 hours, low maintenance costs.
4 High thermal radiation efficiency: 50%, fast heating, saving gas. >
5 not easy to absorb water: even in a humid environment for high temperature heating will not cause damage to the material.
6 uniform and stable combustion: high temperature state also has no tempering phenomenon, uniform heating.
7 thermal inertia small: heating and cooling fast (after 5 seconds can be cooled to normal temperature), can achieve automatic temperature control.
Strong thermal expansion resistance: severe changes in thermal load will not cause damage to the material.
9 high strength: resistance to a certain mechanical impact, no impact on the material, so that the installation and handling is not easy to damage.
10 design and manufacture convenience: can be tailored according to the needs of various shapes and different power burners.
11 Low CO: combustion is more complete due to complete premixed combustion, CO12 in infrared combustion mode. Low NOx: in infrared combustion mode,
our services
Guangzhou Lanju Energy TechnologyCo., Ltd. not only has skilled technicians and experienced after-sales service team, butalso has many years of practical experience in the field of natural gas combustion, heating and drying.It also keeps up with the trend of applying Internet technology to all aspects of the company's production and operation, actively develops Internet marketing, and timely provides information and technical services for the company's new products. Ensure users provide complete services.
pre-sales- Instruct customers to select * equipment configurations for applicableproducts.
- According to customer requirements, non-standard customized products, in order to meet customer production process at the same time, energy saving and environmental protection.
- Free assignment ofsenior engineers to thesite planning site\design * best process and scheme.
- According to the customer site energy consumption situation, planning the overall energy use * best plan.
in sale
1. Strict inspection of products before delivery (single machine test is not less than 6 hours).
2. Organize delivery according to contract.
3. Strictly according to the customer to determine the design of manufacturing.
after-sales
1. Assign after-sales service personnel to the site to guide installation and debugging.
2. Train operators on site.
3. Domestic customers encountered problems in the production process, our company's service personnel guarantee to give a clear solution within 12 hours. 48 hours to the scene to deal with.
